Request For Our Latest Prices on Stainless Steel 304H Nuts in Bangkok, Thailand!

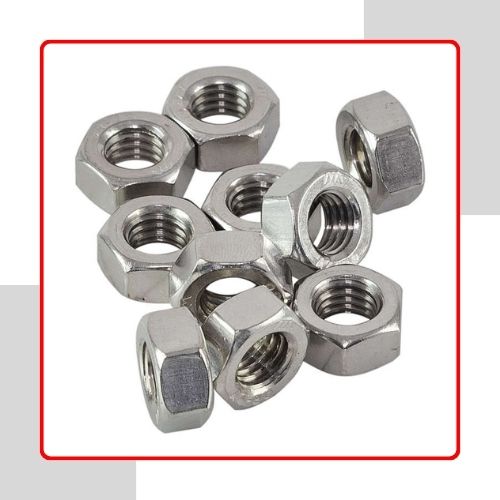

Pengkumta Fasteners is a leading manufacturer, supplier and exporter specializing in quality Stainless Steel 304H nuts. We adhere to the highest technical standards and use premium raw materials to manufacture and distribute our products worldwide, ensuring exceptional quality and performance for demanding industries
Pengkumta Fasteners, based in Bangkok, Thailand, stands out as a top manufacturer and supplier of high-quality stainless steel fasteners, including the renowned Stainless Steel 304H Nuts. Known for their precision and durability, the company adheres to international quality standards, providing fastening solutions that cater to a variety of industrial needs. These Stainless Steel 304H Nuts are specifically crafted to offer exceptional strength, corrosion resistance, and stability even at high temperatures. With a commitment to innovation, timely delivery, and customer satisfaction, Pengkumta Fasteners delivers reliable products that support industries like chemical processing, power generation, oil and gas, marine, and high-temperature equipment manufacturing.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
| Specifications | DIN, ISO ,JIS ,GB, IS, BS, ASTM |
| Standard | ASTM A193 / A194, ASME SA193 / SA194 |
| Size | M2 – M100 |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions Standard | DIN: DIN931, 933, 934, 7991, 976, 125 ISO: ISO 4033, 4032 ASME B18.5, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
The composition of Stainless Steel 304H Nuts includes 18–20% chromium, 8–11% nickel, and a higher carbon content compared to standard 304, which enhances their strength at elevated temperatures. This unique blend not only boosts resistance to oxidation and scaling but also ensures good weldability. On the mechanical side, these nuts showcase impressive tensile and yield strength, toughness, and resistance to creep under thermal stress, maintaining their structural integrity even when exposed to high temperatures for extended periods. The combination of durability, ductility, and stability makes Stainless Steel 304H Nuts a dependable choice for fastening in demanding industrial and engineering settings.
These nuts are widely utilized in scenarios where strength, durability, and heat resistance are crucial. You’ll often find them in boilers, heat exchangers, pressure vessels, and pipelines within power plants and petrochemical industries. Their ability to resist oxidation and scaling makes them ideal for high-temperature applications, while their corrosion resistance guarantees a long service life in chemical processing and marine environments. Engineers and manufacturers trust Stainless Steel 304H Nuts for critical fastening tasks that demand safety, stability, and long-lasting performance, making them a go-to option in the industry.
